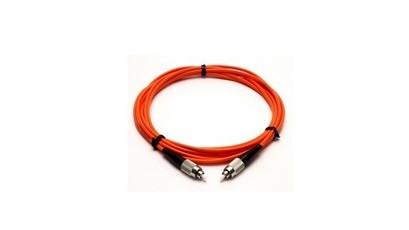

High Speed FC / Upc FC - FC Duplex Patch Cord Low Insertion Loss Orange Color

Product Categories
Fuji Science & Technologies (Wuhan) Co., Ltd.
Contact Now

High Speed FC / Upc FC - FC Duplex Patch Cord Low Insertion Loss Orange Color

  • 1
  • 2
  • 3

Brand Name : FUJI

Model Number : FUJI-1015

Certification : ISO ,CE ,ROHS

Place of Origin : Rohs

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs

Delivery Time : 5-7 working days

Packaging Details : PE Bag and Carton

Model NO. : FC/UPC-FC/UPC

Sheath Material : PVC/LSZH

Length : Customized

Specification : 2.0mm/3.0mm FC fiber optical patch cord

Contact Now

Product description/ PRODUCT

The patch cord is made by 2.0mm or 3.0mm PVC sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.

It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.

  • Low insertion loss.
  • High return loss.
  • High stability and reliability.

Product Description/ PRODUCT

★Jacket material:OFNR,LSZH ,OFNP
★Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
★Connectors:¢0.9mm,¢2.0mm,¢3.0mm
★Compatible with ROHS

Technical parameter

Characteristic SM , MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.4dB ≤0.2dB ≤0.3dB
Return loss ≥40dB ≥50dB ≥65dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40~+80

Fiber Type/ PRODUCT

★Optional Fiber Cable can choose from:OS2,OM2,OM1,OM3,OM4

Packaging/ PRODUCT

★Polybags packing for each
★Packing with label

Technical Specifications/ PRODUCT

★Insertion Loss Rate Compatible with IEC 61300-3-4
★Return Loss Rate Compatible with IEC 61300-3-6
★End face Geometrical size
UPCcurvityradius :10 ~ 25mm APC curvityradius:5 ~ 12mm
Apex offset:0 ~ 50um Apex offset:0 ~ 50um
Fiber dent:+50 ~ -100 Fiber dent:+50 ~ -100

Environmental Technical Requirements/ PRODUCT

Transport & Storage environment: -40ºCto+85ºC
Operation environment: -20ºCto+75ºC
